Deck Oven LM2-503E

(312 customer reviews)

Product Description

Designed for high-volume production, the LM2-503E delivers six fully independent decks with precise digital control of temperature, steam time, and heating. Its robust stainless steel structure ensures reliability under continuous operation, while the caster and damper system enhance flexibility and convenience for commercial kitchens and industrial bakeries.

Key Features

Digital control panel allows independent adjustment of temperature, steam time, and upper/lower heating for each deck.

The unit features a modular, detachable deck design for easy installation and flexible configuration.

Each deck is equipped with an independent steam system, lighting, and timer, allowing separate operation.

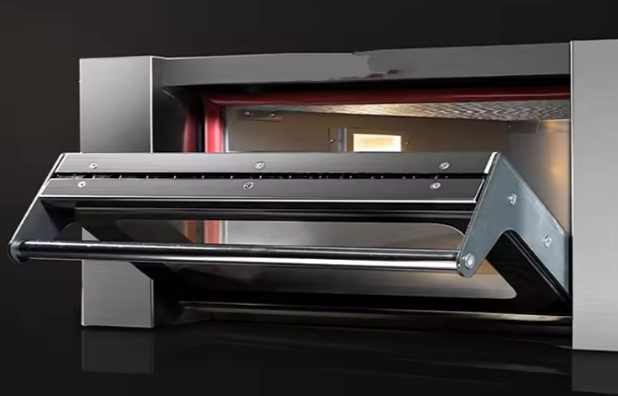

Front drop-down doors with viewing windows provide easy observation and access to the baking chamber.

The entire unit is constructed of stainless steel, ensuring durability and easy maintenance.

Optional accessories: steam generator, exhaust hood, and baking stone.

Service & Support

Fast Delivery (2-5 business days)

2-Year Warranty

24/7 Customer Support

Detailed User Manual & Recipes

Digital control panel allows independent adjustment of temperature, steam time, and upper/lower heating for each deck. The unit features a modular, detachable deck design for easy installation and flexible configuration. Each deck is equipped with an independent steam system, lighting, and timer, allowing separate operation. Front drop-down doors with viewing windows provide easy observation and access to the baking chamber. The entire unit is constructed of stainless steel, ensuring durability and easy maintenance. Optional accessories: steam generator, exhaust hood, and baking stone. Models LM-502E and LM-503E are equipped with damper control and caster design for easier mobility.

Number of Decks		6
Number of Trays(per deck)		3
Tray Size(mm)		400×600
External Dimension(mm)	Width	1360
	Depth	1080
	Height	1650
Baking Chamber Dimension(mm)	Width	900
	Depth	685
	Height	230
Weight(kg)		500
Power per Deck(kw)		16.5
Max Temperature (℃)		20-300
Outside Panel (front side)		stainless steel
Outside Panel (other sides)		aluminum coated steel
Door-open style		downward&outward
